Grasping robot: a live object-grasping qBrain

Warning

qrobot_simulator is experimental. This tutorial uses scenario-specific grasping, sensing, movement, and rendering interfaces that may change between minor releases.

Research provenance

This tutorial implements the object-grasping architecture in Quantum-like Modeling of Cognitive Architectures for Robotics. The architecture diagram and robot photograph are archival assets of this master’s thesis work. The two-dimensional world is rendered by examples/grasping_robot.py using the current Redis-connected qUnit implementation.

In Quantum-like Modeling of Cognitive Architectures for Robotics we use a carnivorous-plant metaphor: a stationary robot waits for an object, closes its gripper when the object is reachable, and uses an internal touch sensor to detect contact. The stationary design focuses the example on the signal path from distance and touch readings to gripper actuation.

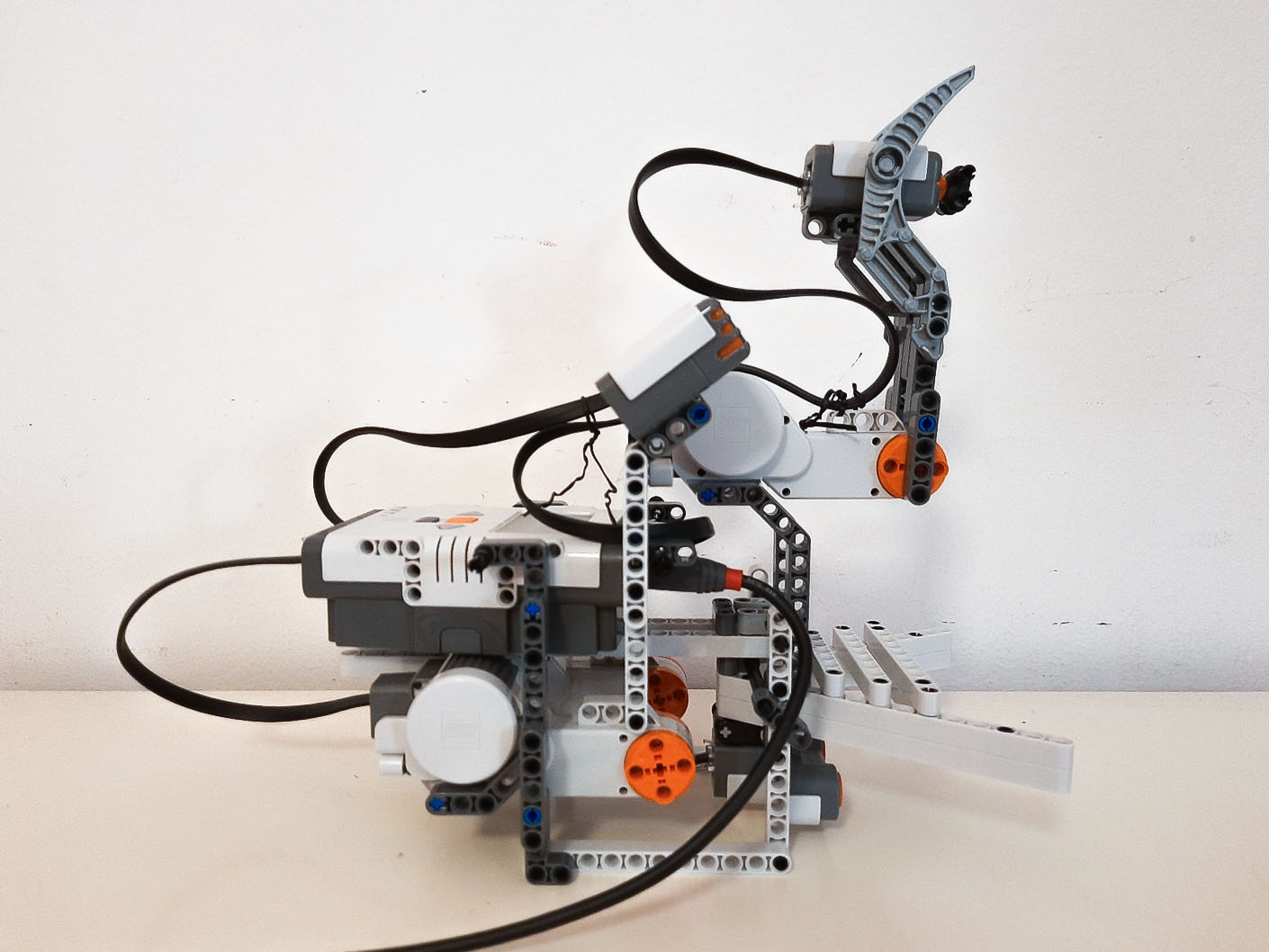

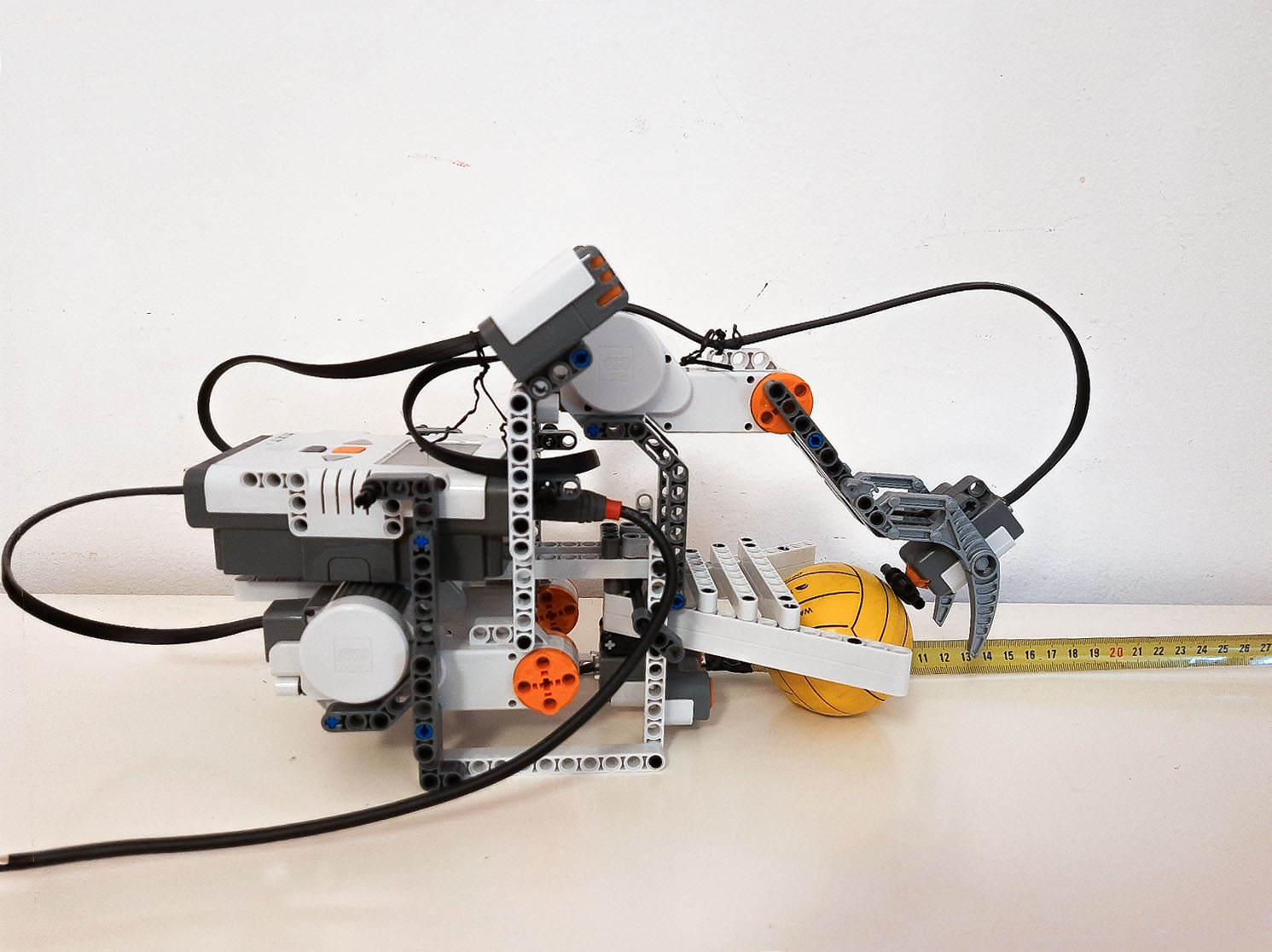

Open gripper	Closed gripper

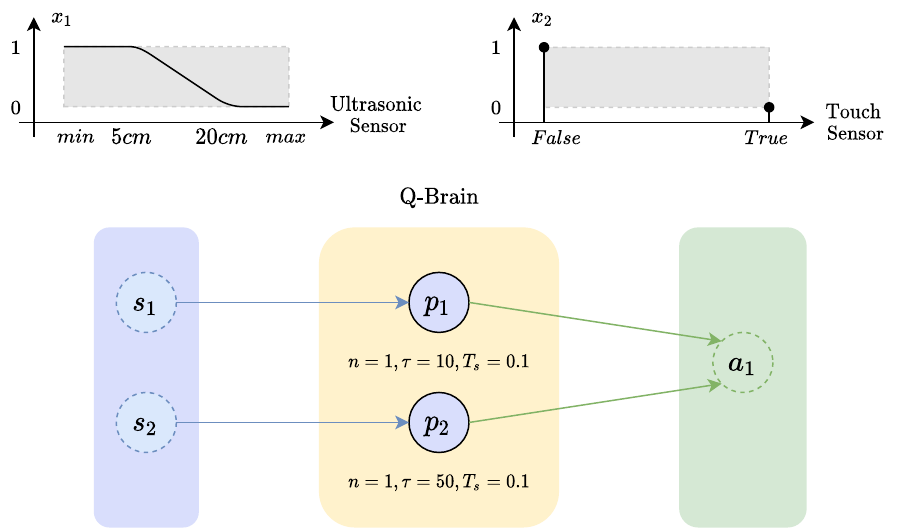

Architecture

The network uses the package’s three explicit runtime roles:

1. An ultrasonic sensor measures a continuous distance in centimetres. Its interface normalizes that measurement to the interval \([0,1]\): 1 means closest and 0 means farthest or out of range.

2. A touch interface produces 1 while the gripper is empty and 0 when its internal switch is pressed.

3. Perceptual qUnit \(p_1\) integrates 10 samples at \(T_s=0.1\) s, so its effective window is 1 second.

4. Perceptual qUnit \(p_2\) integrates 50 samples at the same rate, producing a slower 5-second assessment.

5. The actuator averages the two bursts and closes only when the normalized sum is strictly greater than 0.5.

The touch sensor is inside the gripper. It reports contact only after the jaws have closed around prey. In the carnivorous-plant analogy, that contact is also the plant’s feedback that it is still consuming what it caught. Once the prey has been absorbed, the contact disappears: “I have absorbed what I could; now I can open for the next one.” Thus touch is not an external presence detector. While the robot waits with open jaws it merely reports that the gripper is empty, so proximity is still needed to initiate a grasp.

The two sensors answer different questions:

• proximity asks, “is there an object close enough to attempt a grasp?”;

• touch asks, “is the gripper still empty, or did that attempt make contact?”

For binary qUnit bursts, the actuator’s strict > 0.5 threshold acts like an AND gate:

Proximity burst	Empty-gripper burst	Mean	Command
0	1	0.5	remain open: nothing is reachable
1	1	1.0	close: an object is near and the gripper is empty
1	0	0.5	open after contact has persisted through the slow window

The unequal windows are the point of the architecture. Proximity supplies a relatively fast assessment of the approaching object, whereas touch supplies slower feedback about the result of the grasp. Each decision represents a whole sensor history, rather than forwarding the latest raw sample directly to the motor.

The example studies one specific question from the thesis: how independently timed, stochastic quantum-like decisions can represent perceptual evidence and feedback before an actuator combines them. Its world contains one object type, deterministic sensor interfaces, and a single gripper behavior. Those boundaries define the experiment implemented below.

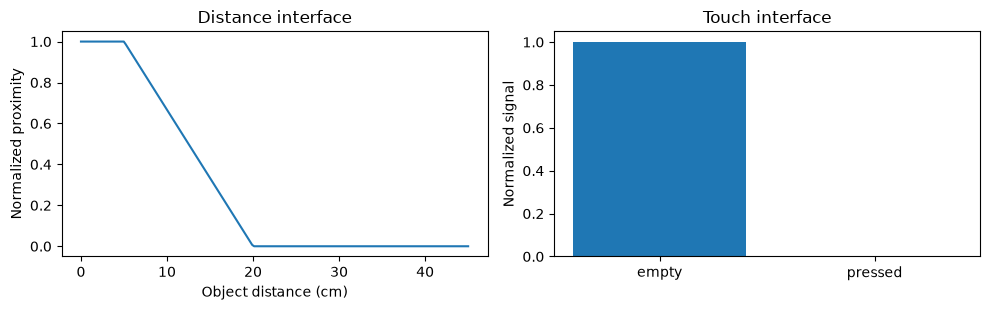

Sensor interfaces

The simulated ultrasonic sensor first produces a continuous distance in centimetres. proximity_interface then converts it to the normalized scalar that a SensorialUnit accepts. The mapping follows the architecture diagram: distances at or below 5 cm map to 1, distances at or above 20 cm map to 0, and values between those limits are linearly interpolated. These values come from the robot’s geometry: 5 cm is the distance from the ultrasonic sensor to the robot’s front surface, while 15 cm is the outer entrance to the grippable area. The remaining 15–20 cm interval provides advance warning before an object reaches the jaws. Thus closer means a higher input. This inversion of physical distance is intentional: with query [1.0], \(p_1\) asks whether its temporal window resembles the closest-object target. No extra negation or complementary query is required.

The touch interface is already binary: False (empty/not pressed) maps to 1, and True (pressed) maps to 0.

import matplotlib.pyplot as plt
import numpy as np
from qrobot_simulator.grasping_robot import proximity_interface, touch_interface

distances = np.linspace(0, 45, 200)
proximity_values = [proximity_interface(distance) for distance in distances]

fig, (distance_axis, touch_axis) = plt.subplots(1, 2, figsize=(10, 3.2))
distance_axis.plot(distances, proximity_values)
distance_axis.set(
    xlabel="Object distance (cm)",
    ylabel="Normalized proximity",
    ylim=(-0.05, 1.05),
    title="Distance interface",
)
touch_axis.bar(["empty", "pressed"], [touch_interface(False), touch_interface(True)])
touch_axis.set(ylabel="Normalized signal", ylim=(0, 1.05), title="Touch interface")
fig.tight_layout()
plt.show()

qBrain

The GraspingRobot internal components are the following:

from qrobot_qunits import RedisConfig
from qrobot_simulator.grasping_robot import build_grasping_qbrain

sensors, qunits, actuator = build_grasping_qbrain(redis_config=RedisConfig())

sensors

{'proximity': SensorialUnit "grasp_distance-bffc48"
      name:	grasp_distance
      id:	grasp_distance-bffc48
      sampling_period:	0.1,
 'touch': SensorialUnit "grasp_touch-6e5fb0"
      name:	grasp_touch
      id:	grasp_touch-6e5fb0
      sampling_period:	0.1}

The two SensorialUnit workers publish the latest normalized interface values to Redis. grasp_distance receives the continuous proximity value described above; grasp_touch receives 1 while the internal switch is not pressed and 0 when contact presses it. They transport readings but do not perform the temporal decision themselves.

qunits

{'proximity': QUnit "grasp_proximity-f69997"
      name:	grasp_proximity
      id:	grasp_proximity-f69997
      model:	[model: AngularModel, n: 1, tau: 10]
      burst:	<class 'qrobot.bursts.zeroburst.ZeroBurst'>
      query:	[1.0]
      sampling_period:	0.1,
 'empty_gripper': QUnit "grasp_empty-e71b39"
      name:	grasp_empty
      id:	grasp_empty-e71b39
      model:	[model: AngularModel, n: 1, tau: 50]
      burst:	<class 'qrobot.bursts.zeroburst.ZeroBurst'>
      query:	[1.0]
      sampling_period:	0.1}

The perceptual qUnits independently sample those Redis values. grasp_proximity compares a 1-second distance history with query [1.0] (the closest-object target). grasp_empty compares a 5-second touch history with [1.0] (the empty-gripper target). Each publishes a stochastic binary ZeroBurst; a 1 therefore means that the window matched that unit’s target closely enough for the sampled measurement to be zero.

actuator

ActuatorUnit "grasp_gripper-aa6d12"
     name:	grasp_gripper
     id:	grasp_gripper-aa6d12
     in_qunits:	{0: 'grasp_proximity-f69997', 1: 'grasp_empty-e71b39'}
     threshold:	0.5
     sampling_period:	0.1

• the ActuatorUnit averages its incoming bursts, then sends the activation signal only when the result is strictly greater than its threshold.

Live demo

The BallPrey robot starts gently at a varied middle-to-far position and then wanders by receiving random changes in speed and direction. Those changes do not inspect its position: there is no rule steering it toward or away from the mouth. Only collisions with the arena edges or closed jaws depend on location. This makes hesitation, reversals, near misses, and deceptive approaches possible throughout the sensor range instead of producing a scripted beeline followed by back-and-forth motion. Pass --seed to replay the same random motion.

The orange band represents the complete 20 cm distance-sensor range, measured from the sensor origin beside the robot body to the dotted orange boundary. The green 5–15 cm section is the physical grippable area; 5 cm ends at the robot surface, 15 cm is the jaws’ outer entrance, and 15–20 cm is the warning region. The dashed line measures to the ball centre, matching the value shown in cm. The two small grey pads at the inner tips of the jaws are the physical touch sensor. When closed jaws contact the ball, the touch signal changes from empty (1) to pressed (0).

Closed jaws are also a physical barrier. A ball caught while the jaws close is held while the plant “digests” it, and an outside ball cannot pass through closed jaws. After 2.5 simulated seconds the caught ball vanishes and a new ball appears at a random far position, ready for another encounter. The live score counts a correct grip on closure around a ball, a missed grip when a visit to the jaw area ends uncaught, and an empty grip whenever the jaws close without a ball inside.

The faster proximity unit responds first. The gripper closes only once both bursts are active. The contact with the ball then changes the touch interface immediately, but the slow qUnit needs a complete temporal window before its burst changes. This delay is the architectural effect the simulation exposes visually: actuation is based on temporally integrated qUnit decisions rather than raw sensor values.

The result is stochastic because each qUnit produces a one-shot measurement at the end of its window. Exact transition times can vary between runs, while the wiring and temporal scales remain fixed.

Run the example

With Redis listening on localhost:6379:

python examples/grasping_robot.py

The encounter repeats until its window is closed or Ctrl-C is pressed. --speed selects a simulation-time/wall-clock-time ratio in (0, 10] while preserving the ratio between the one- and five-second qUnit windows. Both qUnits are warmed up before the scenario clock starts, so process startup is not mistaken for sensor history. --seed makes the random path reproducible. A reproducible headless frame can also be saved:

python examples/grasping_robot.py --duration 10 --seed 7 --no-show \
  --save-world grasping_live_world.png

The thin runner creates only its own Redis keys and removes them when its workers stop. It requires neither ROS nor LEGO hardware; the packaged GraspingRobot and BallPrey define the participants, GraspingWorld owns their physical interaction and sensor readings, and GraspingWorldLiveView renders that state.

Reference

• D. Lanza, Quantum-like Modeling of Cognitive Architectures for Robotics, Zenodo, 2020.
